FLEXIDRAIN

 A joint reliance TOZEN



     Flexible Drainage Connector

  FLEXI-DRAIN





Easy-to-mount rubber drainage joint
(for both above and under-ground application)



• Easy to mount

• Easy to take measures against pipe core displacement

• Flat internal surface

• For both above and under-ground application

Application

Absorption of piping eccentricity, expansion and compression

Installation

Edge cutting of structure and piping, displacement sorption part of pipeline in soft ground, and storm drainage lines

Specifications

Nominal diameter: 40A - 200A
Maximum working pressure: 0.1MPa(1.0kgf/cm²)
Operating temperature: -10℃ - 60℃
Expansion and compression eccentricity: 100mm



    Feature
Outstanding Flexibility
Owing to the characteristic of the high quality rubber and bias reinforcement, a moderate length Flexi-Drain provides up to 50mm lateral displacement. This outstanding flexibility allows the Flexi-Drain to be the best choice in drainage and other low pressure system.
Underground Application
Incorporated with steel reinforcing rings enable Flexi-Drain buried underground up to 1.5 M. without deform or failure. Flexi-Drain eliminates
additional protection which is required by ordinary rubber joints.
Easy Installation
Flexi-Drain insert type end connection fixed by stainless steel hose clamp reduces installation cost and time. Flexi-Drain can be installed in series to provide greater displacement for critical application.




    Applications

Owing To be used in most of the drainage, sewerage, or low pressure system to compensate the differential settlement and pipe expansion.
Working Pressure : 1 Kgf/cm2 or below
Working Temperature : -10°C to 60°C
Testing Pressure : 3 Kgf/cm2 (Max.)
Applicable Fluid : Water, Drainage, and Non-Corrosive Sewerage

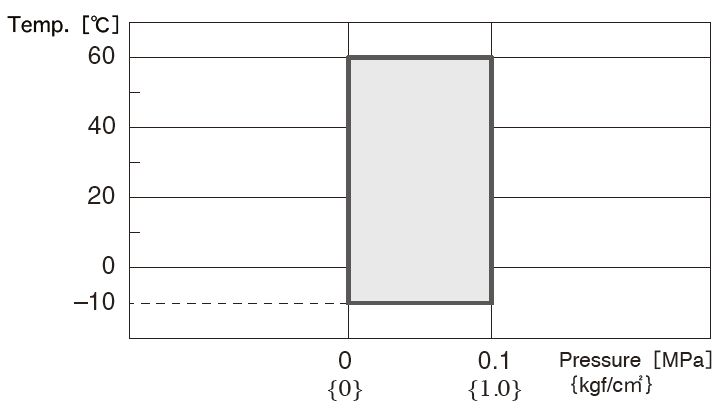

   Operating Conditions and Performance

Flexible Drainage Connector FLEXI-DRAIN : Easy-to-mount rubber drainage joint (for both above and under-ground application)

 ● Check if maximum pressure and temperature are within the range of use.

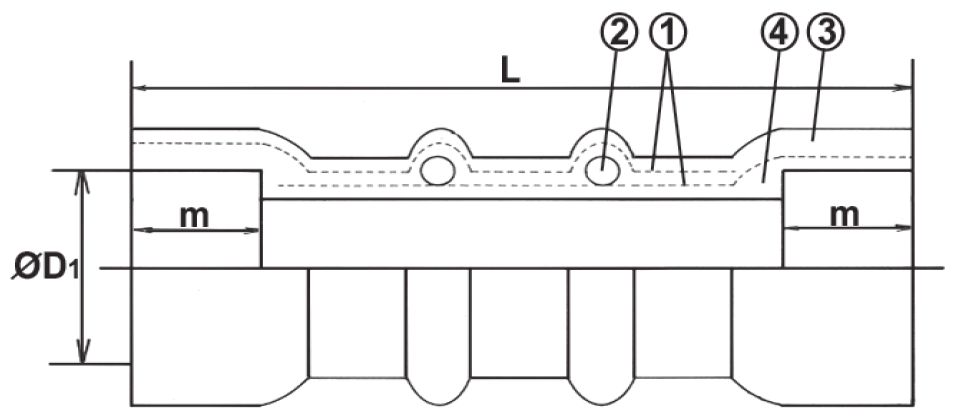

  Structure



Flexible Drainage Connector FLEXI-DRAIN : Easy-to-mount rubber drainage joint (for both above and under-ground application)
No. 　Parts 　Material
1  Reinforcing Cord Nylon Tire Cord
2  Reinforcing Ring Mild Steel
3  Outer Rubber

Natural Rubber
4  Inner Rubber

Natural Rubber






   Dimensions and Allowable Movements
Size Dimension　[mm] Allowable Displacement　[mm]
    L D1 m Lateral Elongation Contraction
40   250 48.6 50 50 10 10
50   250 60.5 50 50 10 10
65   310 76.3 80 50 10 10
80   310 89.1 80 50 10 10
100   350 114.3 100 50 10 10
125   350 139.8 100 50 10 10
150   420 165.2 120 50 10 10
200   480 216.3 150 50 10 10
250   600 270 150 50 10 10
300   600 320 150 50 10 10










 Note：The contents of this catalogue are subject to change without notice.
