STAINLESS STEEL FLEXIBLE HOSE
SF100
|
Union Type Flexible Hose
| Feature |
|
Max.Working Temperature : 100°C
|
| |
|

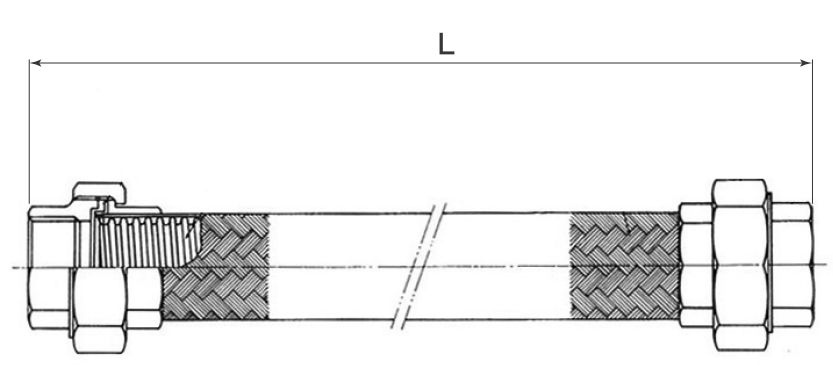

Structure
|
|
|
|
|
No.
|
Parts |
Material |
| 1 |
Screw |
FCMB |
| 2 |
Nut |
FCMB |
| 3 |
Gasket |
Fiber
|
| 4 |
Tube |
Stainless Steel
|
| 5 |
Braid |
Stainless Steel |
| |
|
|
|
|
|
| |
| Dimensions and Allowable Movements |
| Nominal Diameter |
Overall Length
[mm] |
Lateral Movement [mm] |
Working Pressure ［MPa］ |
| mm |
inch |
| 15 |
1/2 |
300 |
27 |
1.6 |
| 20 |
3/4 |
300 |
25 |
1.6 |
| 25 |
1 |
300 |
24 |
1.6 |
| 32 |
1 1/4 |
300 |
20 |
1.6 |
| 40 |
1 1/2 |
300 |
16 |
1.6 |
| 50 |
2 |
300 |
22 |
1.6 |
| 15 |
1/2 |
500 |
52 |
1.6 |
| 20 |
3/4 |
500 |
51 |
1.6 |
| 25 |
1 |
500 |
50 |
1.6 |
| 32 |
1 1/4 |
500 |
50 |
1.6 |
| 40 |
1 1/2 |
500 |
49 |
1.6 |
| 50 |
2 |
500 |
47 |
1.6 |
| 15 |
1/2 |
1000 |
117 |
1.6 |
| 20 |
3/4 |
1000 |
115 |
1.6 |
| 25 |
1 |
1000 |
114 |
1.6 |
| 32 |
1 1/4 |
1000 |
114 |
1.6 |
| 40 |
1 1/2 |
1000 |
113 |
1.6 |
| 50 |
2 |
1000 |
112 |
1.6 |
| |
|
|
|
|
|
Note:
1. Other specifications are also available, please consult with us.
2. Design and specifications are subject to change without prior notice.
|
